Hydraulic Self Loading Concrete Mixer Machine Small Capacity Cement Mixer Machine

Product Categories
HENAN DASION MACHINERY CO.,LTD
Contact Now

Hydraulic Self Loading Concrete Mixer Machine Small Capacity Cement Mixer Machine

Brand Name : DASION

Model Number : JS750

Certification : CE&ISO

Place of Origin : Henan Province, China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 sets per months

Delivery Time : 10-15 working days

Packaging Details : 1x40HQ for 1 set js750 twin shaft concrete mixer

Product name : Small capacity cement mixing machine hydraulic self-loading concrete machine mixer

Productivity : 35m3/h

Discharging capacity : 750L

Charging capacity : 1200L

Max. aggregate size : 80/60mm

Mixing motor power : 30kw

Hoist motor power : 7.5kw

Pump motor power : 1.1kw

Total weight : 5500kg

Contact Now

750L twin shaft ready mix electric portable foam cement machine js750 concrete mixer

Twin-shaft Concrete Mixer Introduction:

JS series twin shaft concrete mixer adopts Germany and Italy European technology used for producing and mixing concrete, which is widely used by all over the world. It is not only applies in common concrete, precast concrete but also in high performance concrete. The cement mixer is applicable for large, medium-scale construction projects, such as high-speed railway, hydropower construction, airport, highway, bridge, etc, and production of high-quality concrete.


This double shaft concrete mixer machine can be used as a separated mixing machine or used as the supporting machine of the ready mix concrete plant. When matched with batching machine, silo, etc, the mixers can form a simple mixing plant.

Twin-shaft Concrete Mixer Parameters:

Model Unit JS500 JS750 YJS1000 JS1500 JS2000
Mixer Capacity m3/h 25 35 50 75 100
Discharging capacity L 500 750 1000 1500 2000
Charging capacity L 800 1200 1600 2400 3000
Max. aggregate size mm 80/60 80/60 80/60 80/60 80/60
Mixing circle s 72 72 72 72 60
Mixing blade Rational speed r/min 35 31 25.5 25.5 23
Quantity pcs 2x7 2x7 2x7 2x8 2x9
Mixing motor power kw 18.5 30 37 44 75
Hoist motor power kw 5.5 7.5 18 18.5 22
Pump motor power kw 0.75 1.1 3 3 4
Dimension mm

4461x3050

x5225

4951x3650

x6225

8765x6436

x9540

9645x3736

x9700

10720x3870

x10726
Total weight kg 4000 5500 8700 11300 15000
Discharging height mm 1500/2700/3800 1500/2700/3800 2700/3800 3800 3800

For providing you the suitable quotation we need to know the following information:

1.What is the raw material for your production line?
2. What is the capacity per hour do you want?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?

Once we get your answers,we can provide you the best quotation immediately. Remarks: The price will depend on different models. Reply message you will get 5% discount price.

Twin-shaft Concrete Mixer Deatils:

Hydraulic Self Loading Concrete Mixer Machine Small Capacity Cement Mixer Machine

  • The mixing blades adopt multi mixing blades, free of dead corner, which enables the twin shaft conrete mixers have the perfect mixing efficiency in a short time.
  • The electric oil pump can monitor hydraulic pump, retarder oil temperature, oil level. Users could discover and deal with faults in time, which could improve the service life.
  • The concrete mixers adopt Italy gear box, which have a long service life, lower noise, no oil leakage.
  • The cement mixer shaft end seal with unique pressure differential multiple sealing technique, where there was a substantial increase of shaft service life.

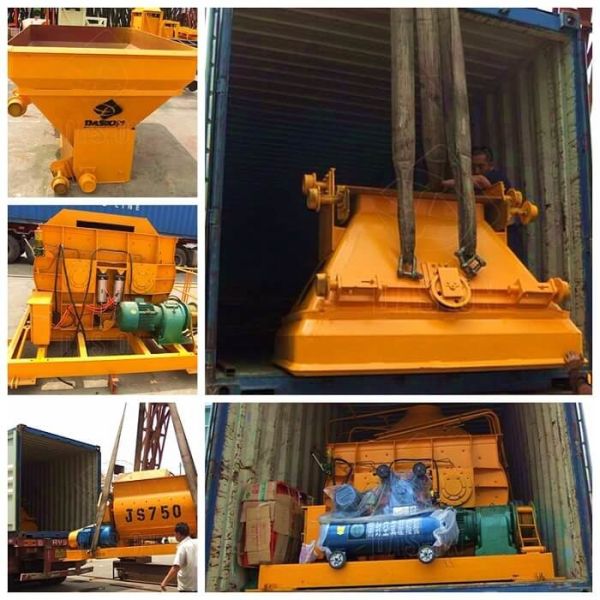

Twin-shaft Concrete Mixer Delivery:

Hydraulic Self Loading Concrete Mixer Machine Small Capacity Cement Mixer Machine
